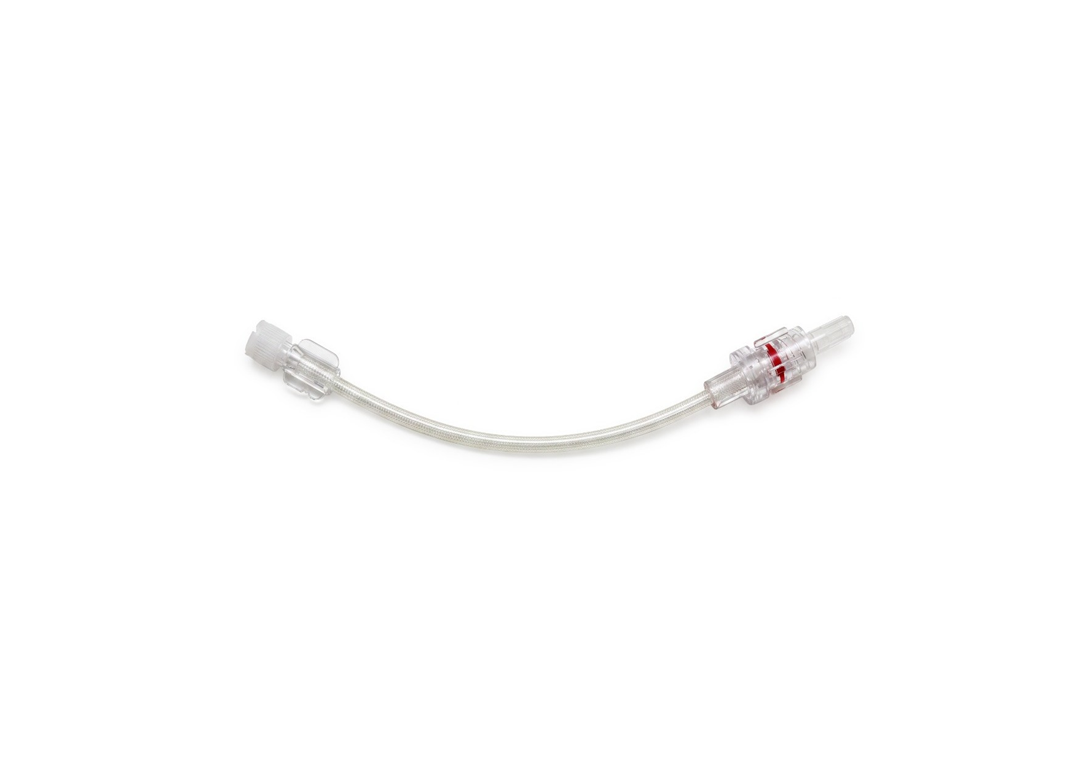

High Pressure Tubing

Specifications

Specifications Vation Flow
Tubing Material Medical-grade DEHP Free polyurethane with braided reinforcement
Inner Diameter .071” (1.8mm)
Pressure Rating 1200 PSI (84 Bar) | 1000 PSI (70 Bar)
Fluid Capacity
25 cm10” Length0.71 ml
50 cm20” Length1.36 ml
100 cm39” Length2.59 ml
120 cm48” Length3.18 ml
150 cm59” Length3.88 ml
200 cm79” Length5.10 ml
Sterilization Method EO
Packaged Coiled, 25 units per box, 4 boxes per case

FLEXIBLE, BRAIDED, POLYURETHANE CONTRAST INJECTION LINE – 1200 PSI (83 BAR)
1200 PSI (84 Bar) 10” (25 cm) 20” (50 cm) 39” (100 cm) 48” (120 cm) 59” (150 cm) 79” (200 cm)
Cat No’s VFLA25 VFLA50 VFLA100 VFLA120 VFLA150 VFLA200

FLEXIBLE POLYURETHANE CONTRAST INJECTION LINE – 1000 PSI (70 BAR)
1000 PSI (70 Bar) 10” (25 cm) 20” (50 cm) 39” (100 cm) 48” (120 cm) 59” (150 cm) 79” (200 cm)
Cat No’s VFLB25 VFLB50 VFLB100 VFLB120 VFLB150 VFLB200

Range Pressure Rating Construction Type Tubing Material Inner Layer / Lumen Reinforcement Connector Material Typical Use Case
VATION FLOW 1200 psi Braided High-Pressure Pebax® 72D / PA12 (Nylon) PTFE or High-Grade Polyurethane Stainless Steel 304 Braided Mesh Polycarbonate (PC) CathLab, angiography, high-pressure contrast injections
VATION FLOW 1000 psi Non-Braided Premium High-Grade Polyurethane (PU) / Nylon 12 Ultra-Smooth PU/PE Blend None (Non-Braided) Polycarbonate (PC) High-performance daily CathLab use

Product Key features

• High-Pressure Stability

Built for demanding contrast injection performance

• Braided Mesh Reinforcement

Superior kink resistance & structural strength.

• Premium Rotating Connector

Smooth 360° rotation for secure, leak-free use.

• Low Dead-Space Tubing

Minimized priming volume and media wastage.

• Radiopaque Safety Line

Enhanced visibility under fluoroscopy.

• High-Clarity Medical PVC / PU

Clean flow pathway for precise control.

• EO Sterile & Procedure Ready

Validated sterility for cath-lab workflows


Packaging

  • Packaged coiled, 25 units per box. | 4 boxes per case

Product Information

  • Product:

    High Pressure Tubing

  • Size

    25, 50, 100, 120, 150, and 200 cm

  • Variants:

    Vation Flow

  • Rating:
